45 Degree Silicone Elbows

Elbow Silicone Hose Applications •Heavy duty truck and bus engines •Buses and passenger cars •Vehicles with diesel engine •Marine •Agriculture & Forestry •For use in high vibration, hot and cold air aspiration units
Availability:
Quantity:
  • 45 degree Elbow Silicone Hose

  • Standards

  • 3917390000

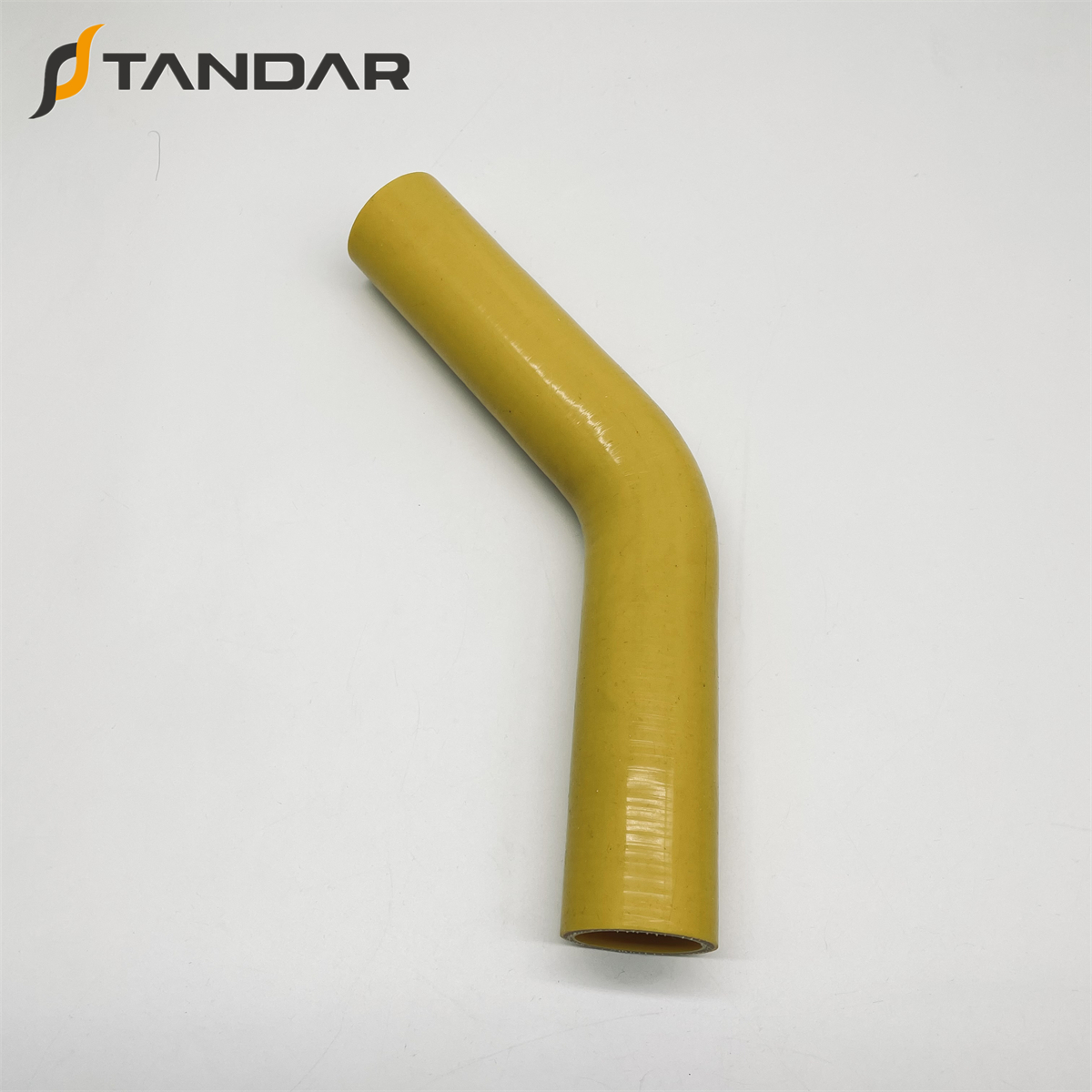

45 Degree Silicone Elbows


45 degree silicone elbow


STANDARDS's line of silicone hose products are used in coolant and high temperature applications. The hose products are available for turbo and charge air coolers in straights and in formed hoses for engines.


45 degree silicone elbows


1.45 Degree Silicone Elbow Applications


•Heavy duty truck and bus engines

•Buses and passenger cars

•Vehicles with diesel engine

•Marine

•Agriculture & Forestry

•For use in high vibration, hot and cold air aspiration units


45 Degree Silicone Hose Bends


2.45 Degree Silicone Elbow Spec.:


Inner and Cover:silicone rubber

Reinforce ply:3-4 ply Polyester/Aramid/Glass fiber

Color: Blue, Red, Black etc. (Inner lining can adopt different colors)

Wall Thickness: 4mm, 4.5mm, 5mm, or as request

Length:  as request

Size Tolerance: ID

Surface: Smooth or Cloth

LOGO: STANDARDS, or as request

Operating Temperatures

Polyester braid reinforced: -54℃ to +220℃ (-65℉ to 428℉)

Aramid braid reinforced: -54℃ to +260℃ (-65℉ to 500℉)


Silicone 45 Degree Elbow


NOTE:


It is used for air/water, not fuel/oil

For fuel and oil use, hose need to be lined with FLUORO SILICONE


3.45 Degree Silicone Elbow Specification


Bore   mm

Bore "

Leg Length

Center line distance

16

5/8"

76mm

48 mm

19

3/4"

76mm

58 mm

22

7/8"

76mm

66 mm

25

1"

102mm

76 mm

28

1 1/8"

102mm

86 mm

32

1 1/4"

102mm

96 mm

35

1 3/8"

102mm

106 mm

38

1 1/2"

102mm

114 mm

45

1 3/4"

102mm

136 mm

51

2"

127mm

152 mm

57

2 1/4"

127mm

170 mm

60

2 3/8"

127mm

180 mm

63

2 1/2"

127mm

190 mm

70

2 3/4"

127mm

210 mm

76

3"

140mm

228 mm


4.Application Field Photos Of 45 Degree Silicone Elbow


Elbow Silicone Hose used in Cars

                               Elbow Silicone Hose used in Cars

Elbow Silicone Hose used in Cars

                                      Elbow Silicone Hose used in CarsElbow Silicone Hose used in Cars

                                 Elbow Silicone Hose used in Cars

                         Elbow Silicone Hose used in Cars

                                              Elbow Silicone Hose used in Cars

Elbow Silicone Hose used in Cars

                                      Elbow Silicone Hose used in Cars
