Straight Reducer Silicone Hose
Standards
3917390000

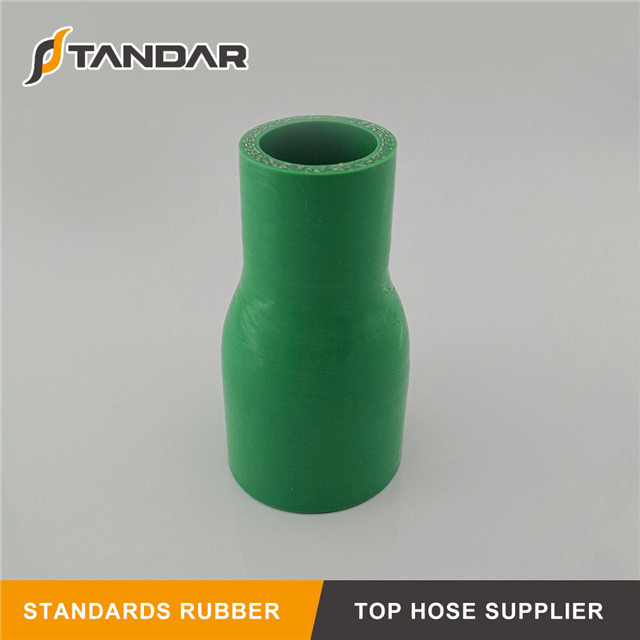

Smooth Surface Colorful Straight Reducer Silicone Hose
STANDARDS's line of silicone hose products are used in coolant and high temperature applications. The hose products are available for turbo and charge air coolers in straights and in formed hoses for engines.
1.Straight Reducer Silicone Hose Applications
•Heavy duty truck and bus engines
•Buses and passenger cars
•Vehicles with diesel engine
•Marine
•Agriculture & Forestry
•For use in high vibration, hot and cold air aspiration units
2.Straight Reducer Silicone Hose Spec.:
Inner and Cover:silicone rubber
Reinforce ply:3-4ply Polyester/Aramid/Glass fiber
Color: Blue, Red, Black etc. (Inner lining can adopt different colors)
Wall Thickness: 4mm, 4.5mm, 5mm, or as request
Length: as request
Size Tolerance: ID
Surface: Smooth or Cloth
LOGO: STANDARDS, or as request
Operating Temperatures
Polyester braid reinforced: -54℃ to +220℃ (-65℉ to 428℉)
Aramid braid reinforced: -54℃ to +260℃ (-65℉ to 500℉)
NOTE:
It is used for air/water, not fuel/oil
For fuel and oil use, hose need to be lined with FLUORO SILICONE
3.Straight Reducer Silicone Hose Specification
Bore > Bore mm | Bore > Bore " | Wall Size | Length |
16-13 | 5/8" > 1/2" | 4-5mm | 102mm |
19-16 | 3/4" > 5/8" | 4-5mm | 102mm |
22-16 | 7/8" > 5/8" | 4-5mm | 102mm |
22-19 | 7/8" > 3/4" | 4-5mm | 102mm |
28-22 | 1 1/8" > 7/8" | 4-5mm | 102mm |
28-25 | 1 1/8" > 1" | 4-5mm | 102mm |
32-25 | 1 1/4" > 1" | 4-5mm | 102mm |
32-28 | 1 1/4" > 1 1/8" | 4-5mm | 102mm |
35-28 | 1 3/8" > 1 1/8" | 4-5mm | 102mm |
35-32 | 1 3/8" > 1 1/4" | 4-5mm | 102mm |
38-28 | 1 1/2" > 1 1/8" | 4-5mm | 102mm |
38-32 | 1 1/2" > 1 1/4" | 4-5mm | 102mm |
38-35 | 1 1/2" > 1 3/8" | 4-5mm | 102mm |
40-35 | 1 5/8" > 1 3/8" | 4-5mm | 102mm |
45-38 | 1 3/4" > 1 1/2" | 4-5mm | 102mm |
51-45 | 2" > 1 3/4" | 4-5mm | 102mm |
54-51 | 2 1/8" > 2" | 4-5mm | 102mm |
57-51 | 2 1/4" > 2" | 4-5mm | 102mm |
60-50 | 2 3/8" > 2" | 4-5mm | 125mm |
63-51 | 2 1/2" > 2" | 4-5mm | 125mm |
70-50 | 2 3/4" > 2" | 4-5mm | 125mm |
70-57 | 2 3/4" > 2 1/4" | 4-5mm | 125mm |
70-60 | 2 3/4" > 2 3/8" | 4-5mm | 125mm |
76-51 | 3" > 2" | 4-5mm | 125mm |
76-63 | 3" > 2 1/2" | 4-5mm | 125mm |
76-67 | 3" > 2 5/8" | 4-5mm | 125mm |
80-70 | 3 1/8" > 2 3/4" | 4-5mm | 125mm |
90-80 | 3 1/2" > 3 1/8" | 4-5mm | 125mm |
102-76 | 4" > 3" | 4-5mm | 152mm |
127-100 | 5" > 4" | 4-5mm | 152mm |
4.Application Field Photos Of Straight Reducer Silicone Hose
Straight Reducer Silicone Hose used in Cars
Straight Reducer Silicone Hose used in Cars
Straight Reducer Silicone Hose used in Cars
Straight Reducer Silicone Hose used in Cars
Straight Reducer Silicone Hose used in Cars
Straight Reducer Silicone Hose used in Cars
We sincerely welcome partners all over the world to visit us for win-win cooperation!
